Numerically controlled worktop milling machine with 5-axis continuous interpolation for dry and wet milling

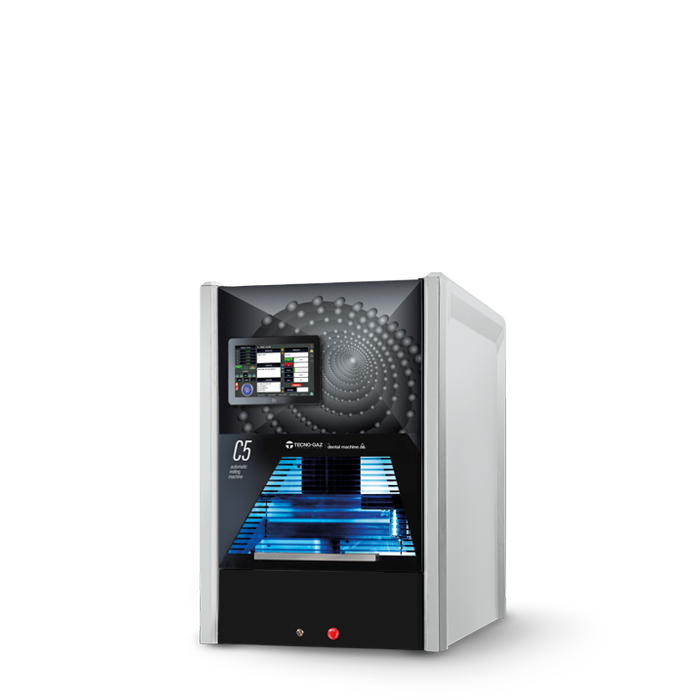

C5 is the medium level milling machine form Tecno-Gaz developed for dental laboratories or dental clinics wanting to take maximum advantage of CAD/CAM technology and obtain a high ROI. Simple to use, numerically controlled worktop milling machine with 5-axis continuous interpolation.
- Movements on 2 rotation axes
- Movement on 3 Cartesian axes
- Implant surgery
- 16 tools with automatic tool changer
- Jäger spindle with maximum power: 1 kW at 60,000 rpm
- Dimensions: 66 x 100 x 100 cm - 220 Kg
Prosthetic products which can be made with C5

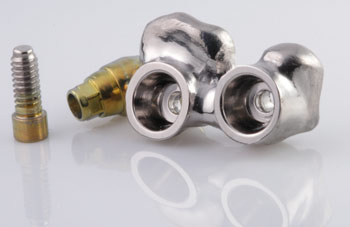

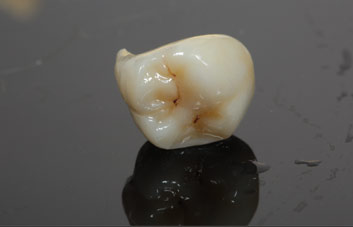

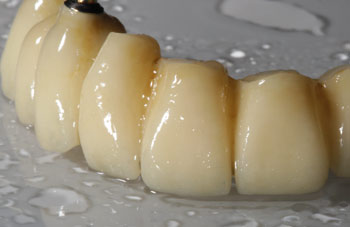

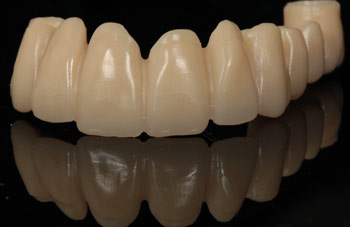

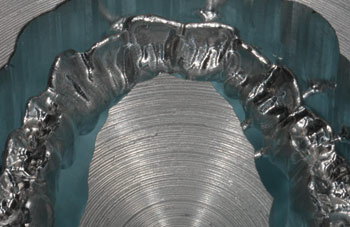

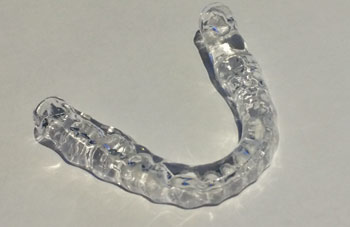

Crowns, bridges, hybrid abutments, models, attachments, veneers, etc.
Materials usable with C5
- All the pre-sintered metals + soft materials and silicates, as well as thermoplastic materials can be milled.
- Wax, PMMA, different resins, composite, pre-sintered zirconium dioxide and aluminium oxide, etc.
Superior characteristics in the whole range
Jäger spindle
German market leading manufacturer: quality guarantee, performances and durability for optimal milling both at low speed (e.g. alloys, Cr-Co and titanium), and at high speed (e.g. ceramics). Wet cooling with external unit supplied.
5-axis CNC on every model
In modern implantology, which requires implant placement at an optimal position and angle, milling can only be carried out on 5 axes. A segment (representing an implant) is defined in space by the 3 Cartesian coordinates, plus 2 inclination axes. The 5 axes are also useful in traditional production, since they allow the prosthetic element to be positioned in the blank at an optimal angle, thus minimising the required thickness. Result: higher speed and lower consumption of materials and tools.
Winning design philosophy
How should the most important machine in your laboratory be built?
For any dental laboratory, the milling machine is the productive centre, the main source of revenue and service and, as a matter of fact, the most important element.
Solid construction, durability, precision and efficiency are the essential features on which Tecno-Gaz has built all its range of products.
The most extraordinary thing that Tecno-Gaz did was to build all the products according to the same structural logic, sparing no efforts even on entry level machines; this is immediately evident at a glance.

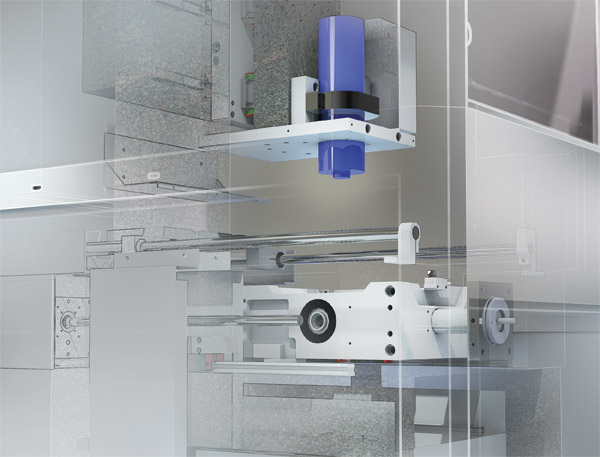

The linear axes are moved by ground recirculating ball screws.
The linear axes are moved by preloaded ground recirculating ball screws, directly controlled by a brushless motor with feedback, to guarantee precision and durability. The screws are permanently lubricated.
Brushless motors with very high resolution (0.05 microns).
All the machines use brushless motors with very high resolution encoders (17 - 20 bits), ensuring an outstanding surface texture of the prosthetic work.
Consistent quality in time and lower maintenance
The transmission of internal mechanical controls of the equipment is always direct, without gear transmissions or drive belt. These solutions have been implemented to avoid ordinary maintenance, machine downtimes, calibration or interference problems, and to reduce noise levels.
CAM software
Open standards. Cost saving and flexibility.
Open standards
The technology used is based on an open system which does not require yearly fixed fees for upgrades, royalties and any types of financial burdens.
Technology works for you.

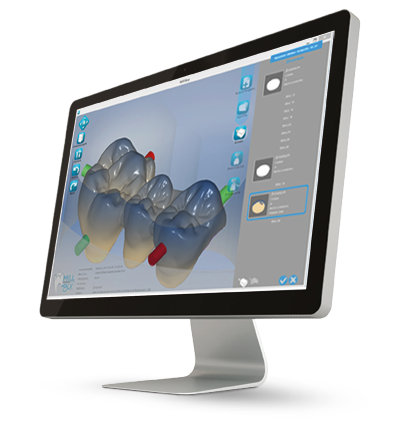

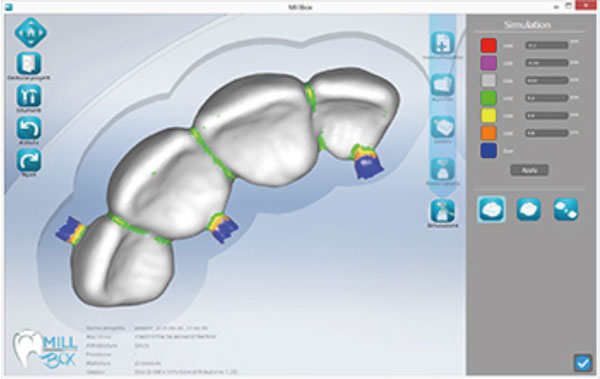

Millbox Dental (OEM version), supplied with the machine and perfectly integrated with the main dental CAD systems, is very simple to use. With a simple click, it carries out thickness optimisation, automatic positioning in the blank (even used), support pin suggestion, collision detection, etc., and includes the milling strategies for all common dental materials.
Easy management
Management with a desktop or tablet PC (external) in Windows™ environment.
Services and support
At the service of your productivity.
Maximum customer support
- Customer service 6 days a week from 8 a.m. to 8 p.m. through Ticket service (on Sunday by appointment)
- Production service during machine downtime. In case of machine downtimes, the production can continue at milling centres
- Pre-sales training (Academy project)
- Support for information on which product is more suitable for the customer’s needs
- On-site installation and training.
Give your investment a greater value in time
- Post-sales training (Academy project)
- 2nd level training (Academy project)
- Subscription to 1st level technical support
- Subscription to 2nd level technical support
- Subscription to 3rd level technical support
Academy project
The Academy project is the package of high value training services for Tecno-Gaz digital workflow. High profile trainers are able to teach the operators in the use of the most advanced technologies, in order to achieve the maximum quality and profit throughout the investment lifecycle.
The range.
The range of
Tecno-Gaz milling machines has been designed to meet all the requirements, ranging from in-house production in dental surgeries and clinics to dental laboratories of all sizes. Every model has been designed to become an essential element of the digital flow and to add the maximum value to time, profitability and professionalism.
- A6 - Entry level high performance machine usable with all pre-sintered metals + soft materials and silicates, wax, PMMA, PEEK, resins, ceramics and lithium disilicate
- C5 - Medium Level usable with all pre-sintered metals + soft materials and silicates, thermoplastic materials, wax, PMMA, PEEK, resins, zirconium dioxide and aluminium oxide
- C5PLUS/C5EVO - Medium Level usable with Wax, PMMA, different resins, composite, pre-sintered zirconium dioxide and aluminium oxide, hydroxyapatite, titanium (grades 2 and 5), Cr-Co
- G5 - Top level: it can mill any kind of prosthetic work from any kind of material. Linear optical lines on the X, Y, Z axes, Granite frame
| Dimensions |
660 (W) x 1.000 (D) x 950 (H) mm
|
660 (W) x 1.000 (D) x 950 (H) mm
|
660 (W) x 1.000 (D) x 950 (H) mm
|
760 (W) x 1.960 (H) x 1.040 (D) mm
|
| Weight |
186 Kg
|
220 Kg
|
220 Kg
|
800 Kg
|
| Tool changer |
Automatic
|
Automatic
|
Automatic
|
Automatic
|
| Number of tools installed |
9
|
16
|
18
|
20 positions, cone change
|
| Spindle |
Jäger, 0.5 Kw, 60.000
|
Jäger, 1 Kw, 60.000
|
Jäger, 3.1 Kw, 60.000
|
Jäger, 2.1 Kw, 10-50.000
|
| Blank |
Ø = 98,5 mm with rim
|
Ø = 98,5 mm with rim
|
Ø = 98,5 mm with rim
|
Ø = 98,5 mm con shoulder
|
| Tool diameter (shaft) |
3 or 4 mm
|
4 or 6 mm
|
4 or 6 mm
|
2 to 10 mm
|
| Tool length |
37÷50 mm
|
37÷50 mm
|
37÷50 mm
|
up to 60 mm
|
| Tool measurement precision |
± 0,001 mm (1 μ)
|
± 0,001 mm (1 μ)
|
± 0,001 mm (1 μ)
|
± 0,001 mm (1 μ)
|
| Tool failure detection |
Automatic
|
Automatic
|
Automatic
|
Automatic
|
| Power supply (single phase) |
220÷240 V; 50÷60 Hz
|
220÷240 V; 50÷60 Hz
|
220÷240 V; 50÷60 Hz
|
220÷240 V; 50÷60 Hz
|
| Compressed air |
7 atm (ext.) - 50 l/min
|
7 atm (ext.) - 80 l/min
|
7 atm (ext.) - 80 l/min
|
7 atm (ext.) - 120 l/min
|
| Motors |
Brushless with encoder
|
Brushless with encoder
|
Brushless with encoder
|
Brushless with encoder
|
| Noise level |
<60 dB
|
<60 dB
|
<60 dB
|
<60 dB
|
| Linear axis resolution |
± 0,00005 mm (0.05 μ)
|
± 0,00005 mm (0.05 μ)
|
± 0,00005 mm (0.05 μ)
|
± 0,00005 mm (0.05 μ)
|
| Rotation axis resolution |
± 0,0008 rad
|
± 0,0008 rad
|
± 0,0008 rad
|
± 0,0008 rad
|
| ATC |
N/A
|
N/A
|
N/A
|
Optional
|
| Tool duplicate management |
Optional
|
Optional
|
Optional
|
Optional
|
| Suction management (external) |
Automatic
|
Automatic
|
Automatic
|
Prepared
|
